1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting

Brand Name : Temei

Model Number : T9-L1390S

Place of Origin : china shenzhen

MOQ : 1

Price : 5999usd~10999usd

Payment Terms : T/T

Supply Ability : 1,000 units per month

Delivery Time : 3~7day

Packaging Details : wooden box

Name : CO2 laser cutting machine

Model : 1300x900mm

Laser Source : CO2 Laser Tube

Laser Power : 130W/150W/180W/200W/300W/450W

Positioning Accuracy : 0.02mm

Repet.Positioning Accuracy : 0.01mm

Max.Cutting Thickness : 30mm (acrylic,plywood,rubber,MDF)

Power supply : 220V,50/60Hz

File format : DXF, PLT, AI, DST, DSB

Net Weight : 500kgs

Application Materials : Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.

Dimensions : 1750x1650x1150 mm

Contact Now

T9-L1390S Wood Board CO2 Laser Cutting Machine
1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting
1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting
1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting

1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting


Cutting Thickness Parameters
Material Thickness Processing Speed (mm/s) Processing Power
1mm 60-70 35-40
3mm 50-60 50-60
5mm 35-40 60-65
8mm 17-23 60-65
10mm 12-17 60-65
12mm 10-14 65-70
15mm 6-8 65-70
20mm 2.5-4 65-70
30mm 1.4-1.8 65-70

Note: The above parameters are for reference only. The cutting effect may vary based on material quality. Please adjust power and speed according to actual conditions.

Configuration and Parameters

Name

CO2 laser cutting machine

Model

T9-L1390S

Working Size

1300x900mm

Laser Source

CO2 Laser Tube

Laser Power

130W/150W/180W/200W/300W/450W

Cooling Method

S&A CW-5200/6000/6200 Chiller

Drive System

Mitsubishi Servo Driver & Motor from Japan

Transmission System

TBI Ball Screw & PMI Linear Guide from Taiwan

Control System

Ruida RDC6442/RDV6445

CCD edge patrol cutting function:

Optional

Double cutting head

Optional

Positioning Accuracy

0.02mm

Repet.Positioning Accuracy

0.01mm

Max.Speed

≤40m/min

Max.Cutting Thickness

30mm (acrylic,plywood,rubber,MDF)

Working table

Blade platform / Cellular platorm (optional)

Red-dot Positioning

Yes

Auxiliary Equipment

Air pump,Centrifugal fans(1.1kw)

Power supply

220V,50/60Hz

File format

DXF, PLT, AI, DST, DSB

Dimensions

1750x1650x1150 mm

Net Weight

500kgs

Application Materials

Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc.
Exhibition and Inspection
1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting

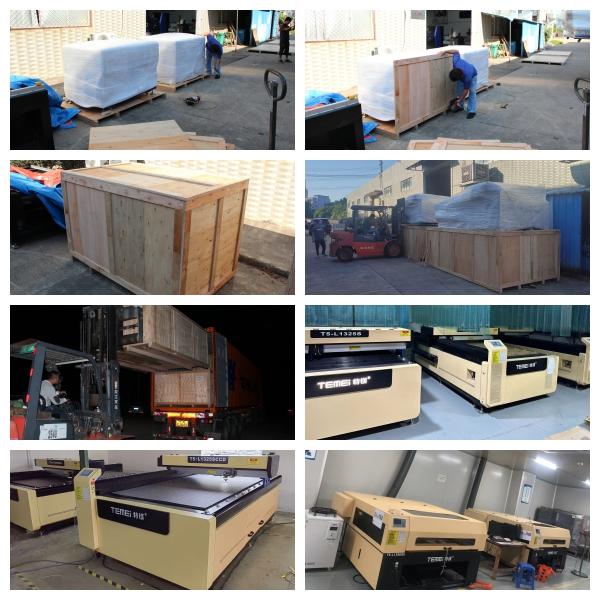

Packaging and Logistics
1390 150W Wood board CO2 laser cutting machine Bamboo board cutting Composite panel cutting
